LC-Flow Sales Sheet

Drag the part to turn it, switch materials and colors, and download the one-page spec sheet.

Download spec sheet (PDF) Request a QuotePlace an Order
Product spec sheetU.S. Patent No. 11,390,466 B1
LC-Flow Valve and Distribution Adaptor

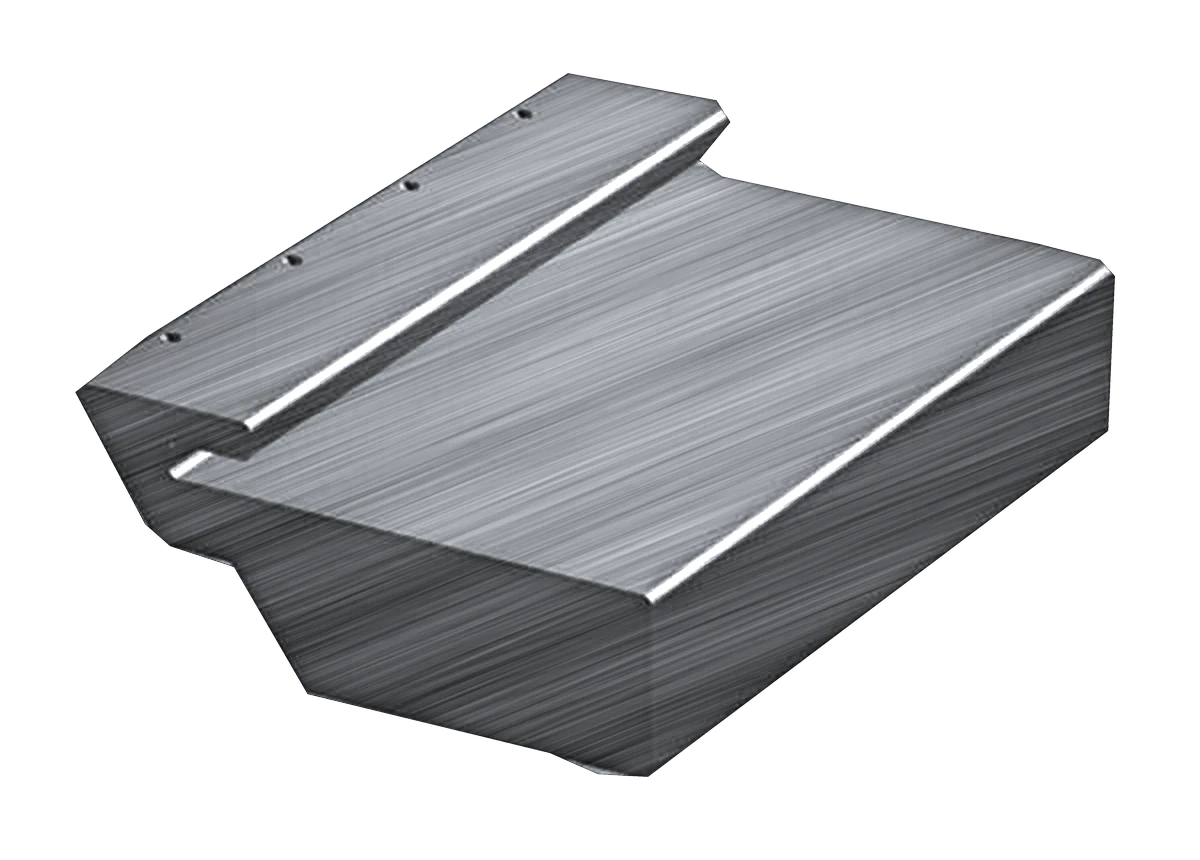

LCSS61000 · 316L stainless Drag to rotate (or use the arrow keys), + and − to zoom. Material looks are visual approximations of a standard finish; the technical view is a line drawing traced from the same render (not to scale).

LC-Flow Valve and Distribution Adaptor

Apparatus for use in molecular transfer and delivery of substances such as vapors, gases, liquids and sprays.

  • Patented design. Protected by U.S. Patent No. 11,390,466 B1 and exclusively licensed to Industrial, Molecular and Quantum Solutions LLC.
  • Flow, distribution and pressure. Controls flow, distribution and pressure; the design allows for consistent fluid and molecule combination.
  • Matched to the environment. Three material versions let you pick the right fit for the duty, from conveyor lines to weight-critical systems.
  • Sold in units of 2. Part size can be customized per machine requirements.

Versions

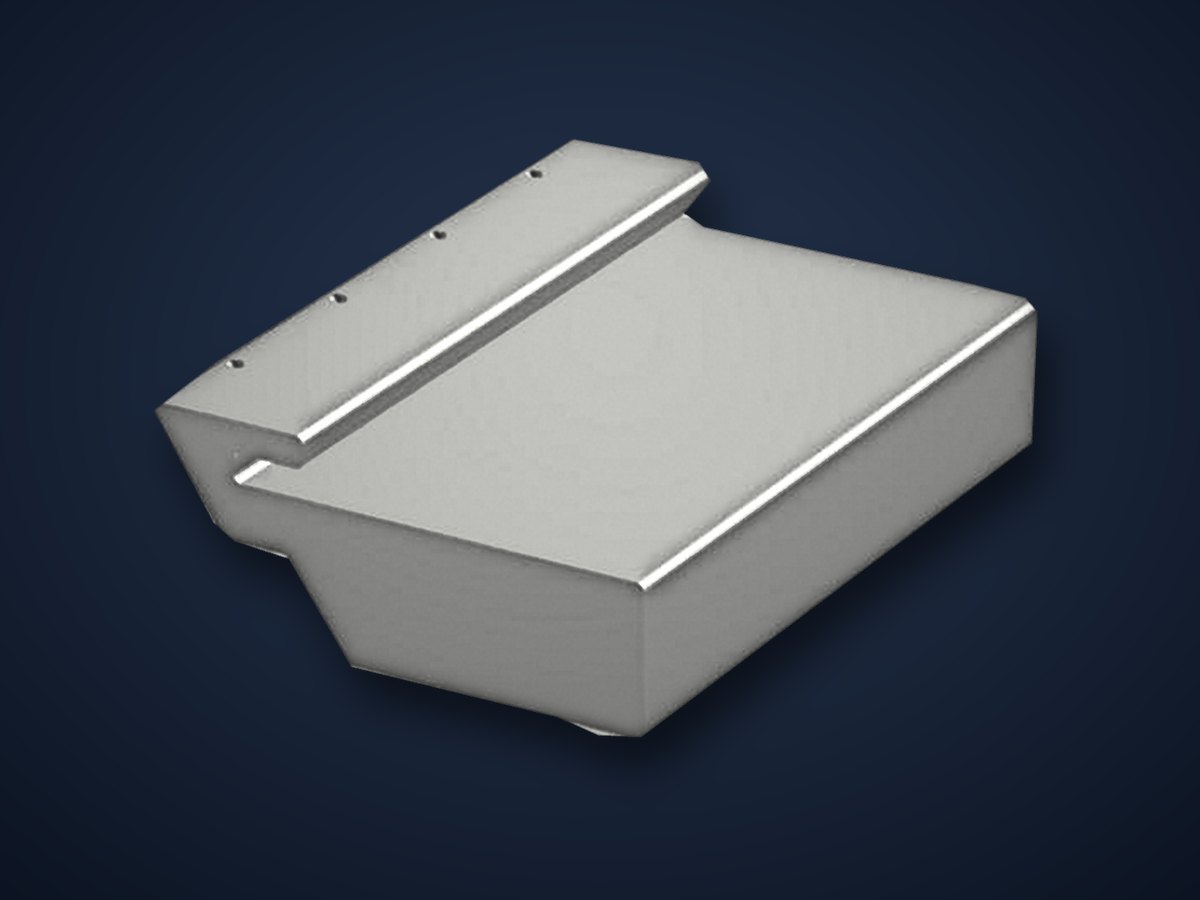

LC-Flow LCP061000, PC-ISO plastic version
LCP061000PC-ISO plasticPET air conveyors, beverage packaging lines, prototyping, non-corrosive pneumatic fluid control, high-volume sparesUnits: 2

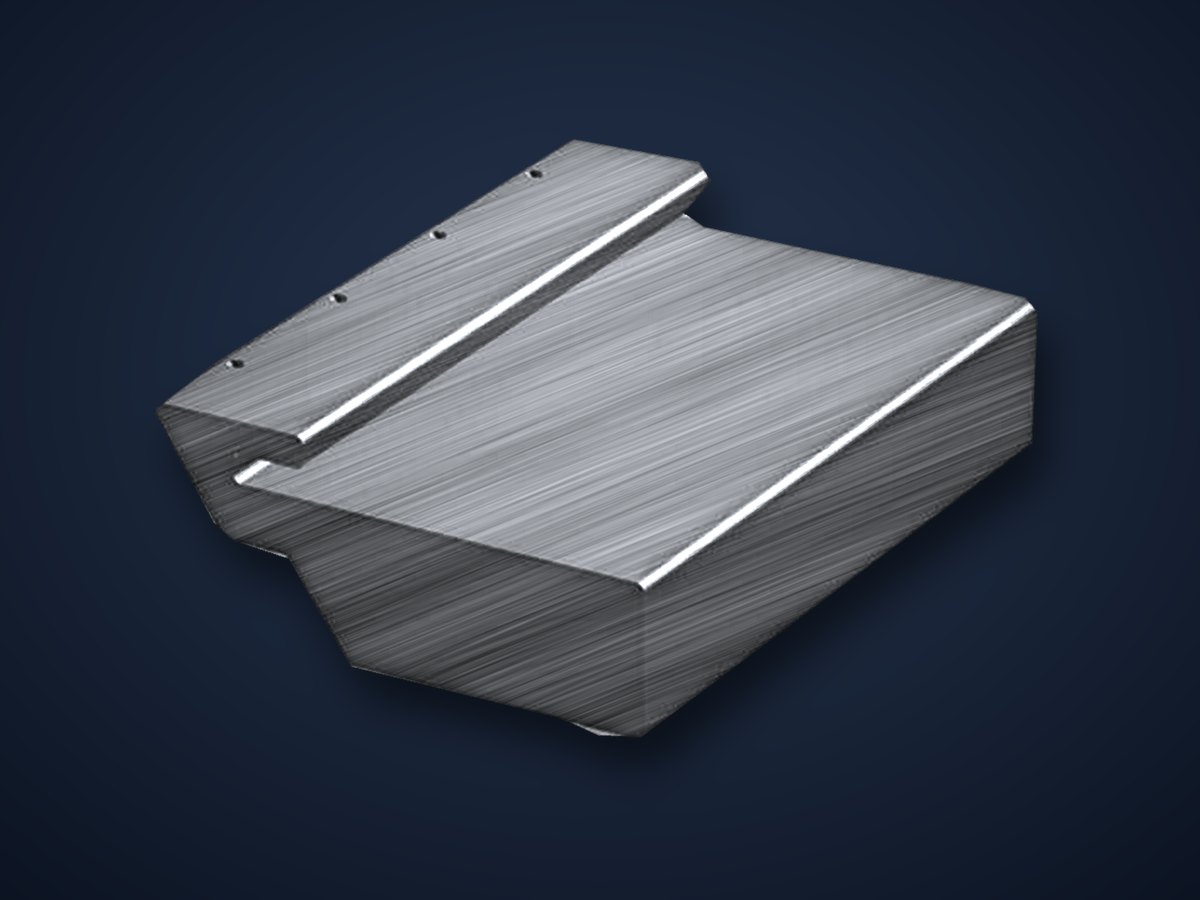

LC-Flow LCSS61000, 316L stainless steel version
LCSS61000316L stainless steelCorrosion-resistant: washdown, corrosive environments, aerospace pneumatics, automotive lubrication and testUnits: 2

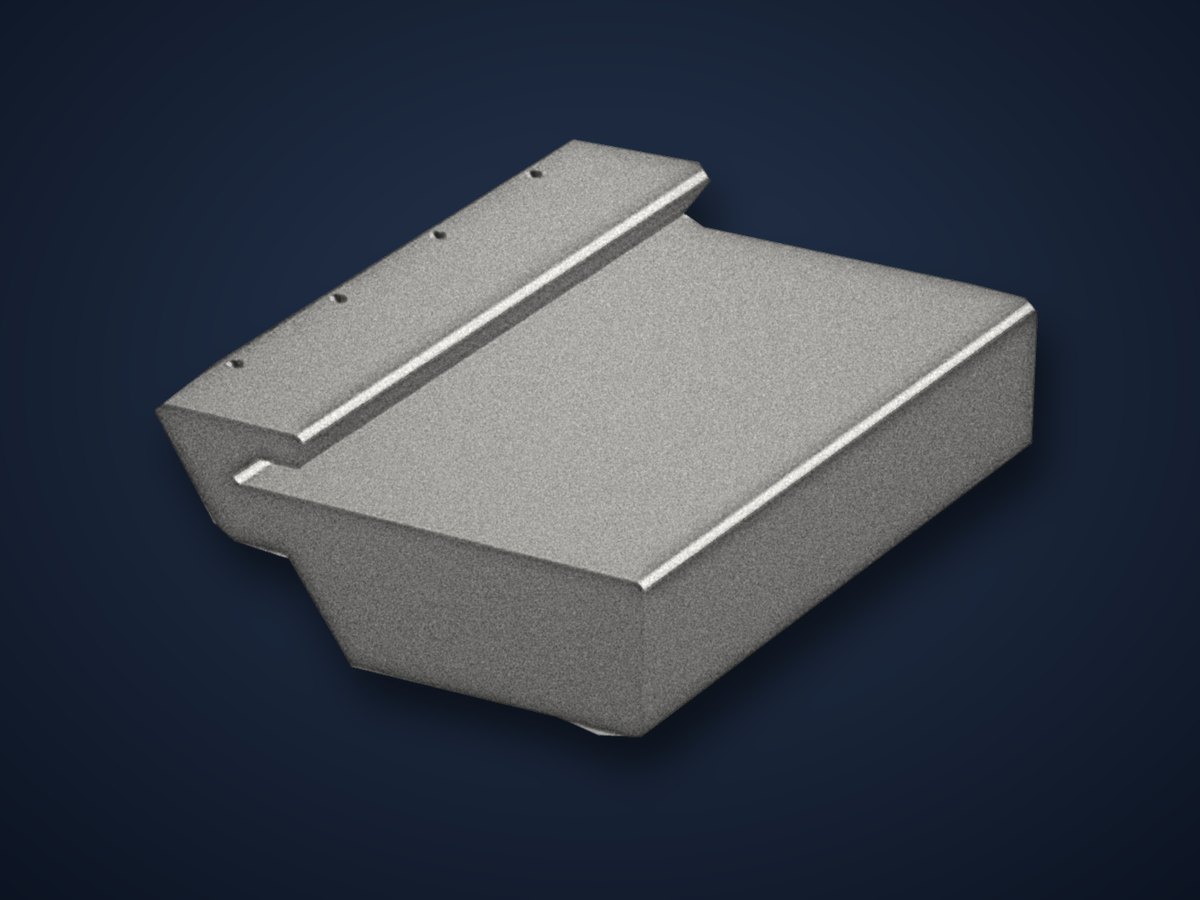

LC-Flow LCA061000, AlSiMg aluminum version
LCA061000AlSiMg aluminumLightweight: aerospace MRO, propulsion test, weight-critical aerospace, automotive and airline applicationsUnits: 2

Applications

  • Industrial lubrication
  • Aerospace: pneumatic and fluidic systems, MRO, propulsion test, ground support
  • Automotive: lubrication, pneumatic fluid control, powertrain test
  • Beverage and PET packaging lines, including PET air conveyors
  • Micro processing and energy transfer
  • Pneumatic fluid control
  • Airline industry

Specifications

Part IDsLCP061000 (Plastic) · LCSS61000 (316L stainless steel) · LCA061000 (Aluminum AlSiMg)
UnitsSold in units of 2
MaterialsPlastic (various), Aluminum AlSiMg, 316L stainless steel, Stainless 17-4, 316i, 420i. Custom materials available.
ColorsWhite, Translucent, Red, Beige, Blue, Black, Grey; Stainless
SizePart size can be customized per machine requirements
FinishStandard
Threads and tapped holesNone as standard; available upon request
Inserts0
InspectionStandard inspection

Custom quotes and designs available. Contact our engineering department with any questions or custom design requests. Drawings and CAD are shared under a mutual NDA.
